Stainless Steel Immersion Centrifugal Pump

The Stainless Steel Immersion Centrifugal Pump is a highly reliable option for transfer fluid applications. With its unique vertical design and corrosive resistance, its the ideal pump for applications up to 100°C.

Contact us for pricing
Details
Features & Applications
Tech Info
Performance

Why is the stainless steel immersion Centrifugal Pump the best of its kind?

Stainless Steel Immersion Centrifugal Pump AISI 316L it is ideal for higher temperatures, up to 100°C and in special applications like hot sodium hydroxide. All wetted metal components are made from corrosion-resistant stainless steel AISI 316L. For special applications like handling of chromium-nickel, electro polished models are available.

Typical Applications:

  • Surface Treatment
  • Water Treatment
  • Heat Exchangers
  • Waste Disposal

Design Features & Benefits

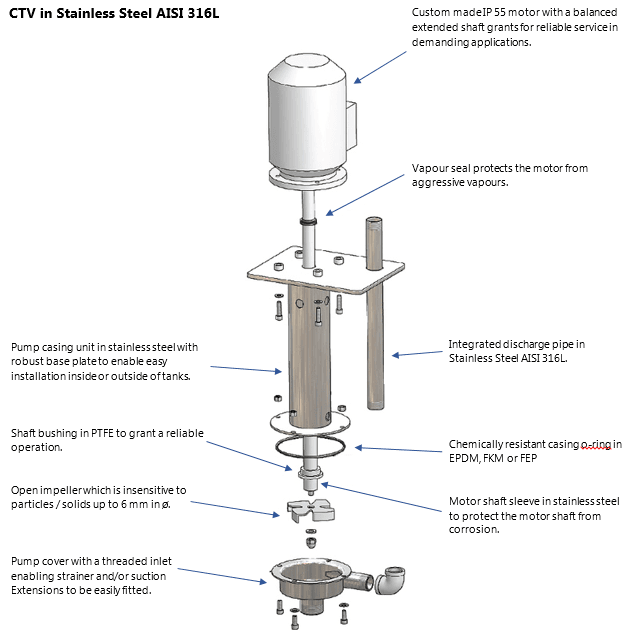

Tapflo’s innovative design philosophy has been applied to the CTV in the Stainless Steel range resulting in a simple yet reliable pump to meet with the requirements of the applications it caters for. Subsequently, it enables them to be maintained and troubleshot in a limited time frame. This results in very short downtimes and extremely low maintenance cost. In fact, in many cases once installed these pumps are maintenance-free!   Stainless Steel CTV Vertical Centrifugal Pump Features

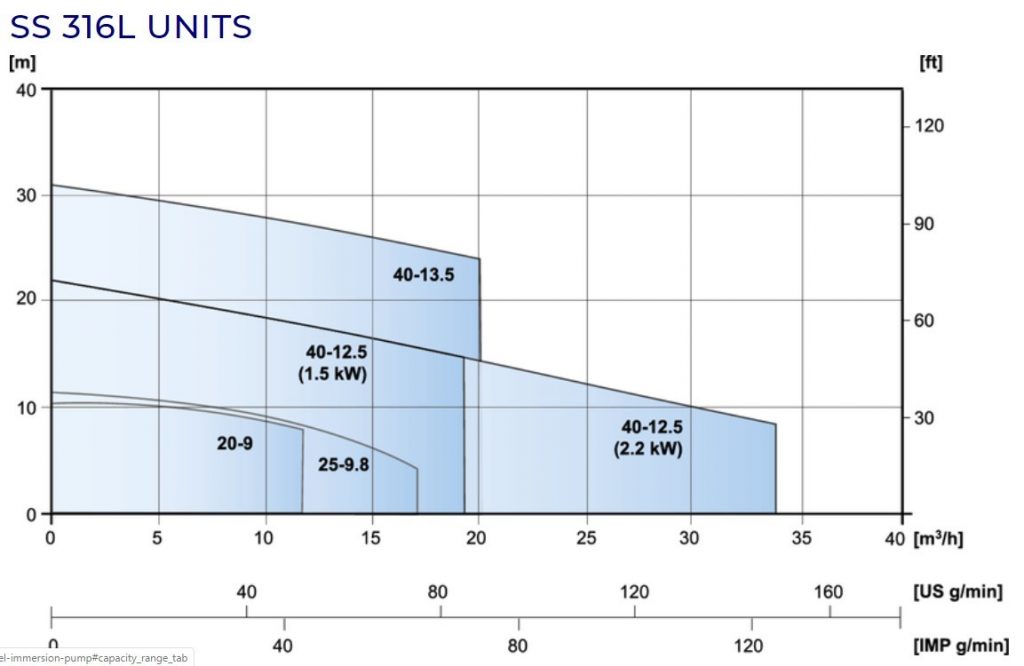

Capacity Range


Pump Size 20-9 25-9.8 25-9.8 40-12.5 40-12.5 40-13.5
Max Capacity, m³/hr 12 17 17 19 34 20
Max Head, m 10 11 11 22 22 31
Motor Power, kW 0.55 0.75 1.1 1.5 2.2 2.2
Outlet ø, BSP ¾” 1” 1” 1½” 1½” 1½”

Technical Information

Drive Type Electric
Flow Rate up to 34 m³/hr
Pressure up to 31m
Material Stainless Steel AISI 316L
Self-Priming No
Solids Handling up to 6mm
Viscosity 0-200 cSt

SS_316L_Capacity_Range_Immersion_Centrifugal_Pump
