Sanitary Counter Connections

The Sanitary Counter Connections have been designed for the Sanitary pumps range that we supply. These sets include a counter-connection, gasket and nut/clamp.



Contact us for pricing
Details
Features & Applications
Tech Info
Performance

The counter connections fit pumps with DIN11851, SMS or the standard tri-clamp connections. These connections can be plain weld or hose. Hose connections can be used with pressures no higher than 6 Bar.

There are three basic types of counter connection sets – according to connection standards. Each of them then divides into two depending on the counter connection type – prepared for welding or hose connection.

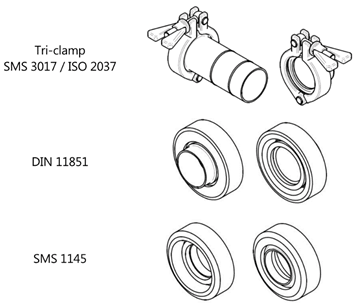

Sanitary Counter Connection Types

Materials

  1. Connections are made of AISI 316L stainless steel, polished to Ra<1,6
  2. Gaskets in PTFE as standard
  3. Clamps and nuts in AISI 304 stainless steel

On the installation side, you can choose a plain weld end or hose connection to increase flexibility even more! The sets are complete and consist of a counter-connection, gasket and nut/clamp. Note, all hose connections are pressure rated to 6 Bar, please do not use them above this pressure.

Coding & Dimensions

Tri-Clamp SMS 3017/ISO 2037

Sanitary Counter Connections
Pump Type Norm Size Clamp Gasket Counter Connection SET Connection Type
T30/T80 SMS 3017 DN25 6-080-1381 6-080-18-1 6-080-511 6-080-51 Weld
6-080-521 6-080-52 Hose
T125 SMS 3017 DN38 6-125-1981 6-125-18-1 6-125-511 6-125-51 Weld
6-125-521 6-125-52 Hose
T225 SMS 3017 DN51 6-225-1381 6-225-18-1 6-225-511 6-225-51 Weld
6-225-521 6-225-52 Hose
T425 ISO 2037 DN70 6-425-1381 6-425-18-1 6-425-511 6-425-51 Weld
6-425-521 6-425-52 Hose

Threaded DIN 11851

Threaded DIN Sanitary connections
Pump Type Norm Size Nut Gasket Counter Connection SET Connection Type
T30/T80 DIN 11851 DN25 6-080-54-5 6-080-53-5-1 6-080-511-5 6-080-51-5 Weld
6-080-521-5 6-080-52-5 Hose
T125 DN38 6-125-54-5 6-125-53-5-1 6-125-511-5 6-125-51-5 Weld
6-125-521-5 6-125-52-5 Hose
T225 DN51 6-225-54-5 6-225-53-5-1 6-225-511-5 6-225-51-5 Weld
6-225-521-5 6-225-52-5 Hose
T425 DN70 6-425-54-5 6-425-53-5-1 6-425-511-5  6-425-51-5 Weld
6-425-521-5 6-425-52-5 Hose

Threaded SMS 1145

Threaded SMS Sanitary Counter Connections
Pump Type Norm Size Nut Gasket Counter Connection SET Connection Type
T30/T80 SMS 1145 1″ 6-080-54-3 6-080-53-3-1 6-080-511-3 6-080-51-3 Weld
6-080-521-3 6-080-52-3 Hose
T125 11⁄2″ 6-125-54-3 6-125-53-3-1 6-125-511-3 6-125-51-3 Weld
6-125-521-3 6-125-52-3 Hose
T225 2″ 6-225-54-3 6-225-53-3-1 6-225-511-3 6-225-51-3 Weld
6-225-521-3 6-225-52-2 Hose
T425 21⁄2″ 6-425-54-3 6-425-53-3-1 6-425-511-3 6-425-51-3 Weld
6-425-521-3 6-425-52-3 Hose
