Industrial Centrifugal Pump

Name: Industrial Centrifugal Pump - TS Pumps
SKU: CTI

The Industrial Centrifugal Pump is a highly versatile option for a wide variety of applications. It offers users corrosive resistance and can also be ATEX Rated for pumping highly viscous fluids.

Details

Features & Applications

Tech Info

Performance

The pump is extremely versatile as it can be supplied with a variety of build options to suit a range of installations and applications. This includes altering the application of the pump from transferring liquids between tanks to being used for tank cleaning and boosting pressure. The pump is supplied with either an open (6mm solids passage) or semi-open impeller. Available in 2 capacity ranges, either 2 pole motors for high head applications or 4 poles for low head applications.

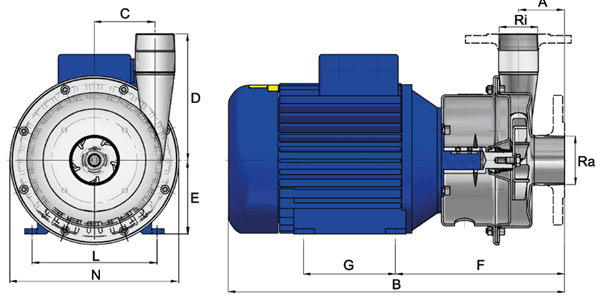

Industrial Centrifugal Pump Close Coupled Design Dimensions

How does an Industrial Centrifugal Pump work?

The Industrial Centrifugal Pump will need to be primed before it is available to be used, this is achieved by filling the pump with liquid. The pump also requires a positive suction head for the pump to operate efficiently. When the pump is started the liquid moves into the pump casing where it meets the impeller. The impeller rotates to create the force that powers the liquid through the pump casing and into the discharge pipe. As the impeller forces the fluid through the pump casing, it generates a low-pressure point which then draws in fluid from the suction side of the pump. This continues the pump operation of transferring liquid through the pump casing.

Benefits of using an Industrial Centrifugal Pump

Easily maintained and quick troubleshooting means short downtime and low maintenance costs
Robust & Versatile Pump

It offers high mechanical and corrosion resistance for a plethora of applications at competitive pricing. The CTI Industrial Centrifugal Pump End Suction, Close Coupled, Single Stage Centrifugal Pumps feature either an Open (6 mm Solids Passage) or Semi-Open Impeller and are manufactured from Glass Blasted Stainless Steel AISI 316L to offer high mechanical and corrosion resistance for a plethora of applications at competitive pricing. The pump can also be ATEX certified on request. The CTI Pump is available as a long-coupled design which allows the pump to handle higher temperatures. Typically the CTI Pump can handle fluids that are a maximum of 90°C, when manufactured with the long-coupled design, the pump can handle up to 180°C.

Typical applications for the Industrial Centrifugal Pump

The CTI Industrial Centrifugal Pump Range is suitable for a wide variety of applications:

Water transfer
Mild Chemicals
Solvents
Oils
Collants
Detergents
Fluids with partial solids for filtering purposes
Diesel, Petrol & Kerosene

Technical Information
Flow Rate	Up to 60 m³/hr
Pressure	Up to 47m
Solids Handling	Up to 6mm
Viscosity	Up to 200 cSt
Temperature	Up to 90°C, for long coupled pumps this is up to 180°C
Materials	Glass blasted Stainless Steel AISI 316L
