Bare Shaft and Hydraulically Driven

The S/P & MID ranges of Bare Shaft and Hydraulically Driven Flexible Impeller Pumps are commonly used for loading and offloading applications in agricultural and transportation industries on vehicles such as trucks, tractors & boats.

Contact us for pricing
Details
Features & Applications
Tech Info
Performance

Bareshaft S/P Range

The Bareshaft S/P Series of Flexible Impeller Pumps are available in 4 different sizes (MINI, MINOR, MAJOR and MAXI).

The series can be connected with a PTO drive or can be assembled to an existing motor and baseplate via a coupling.

MID Hydraulically Driven Range

The MID Series is available in 3 different sizes, MINOR, MAJOR and MAXI. These Flexible Impeller Pumps can be fitted with Orbital Hydraulic Motors (50 CC) or with coupling suitable for attachment to an existing hydraulic drive system.

Manual & Spring Loaded By-Passes are available on request.

Benefits of a Flexible Impeller Pump

  • Excellent self-priming capabilities, up to 6m suction lift from dry
  • Solids handling
  • Reversible operation
  • Pulse free pumping
  • Flexibility to rotate pump head into 5 different positions to suit various pipework installations
  • Variety of impeller options available to meet customer’s application requirements

Applications

In general, Self-Priming Flexible Impeller Pumps are often used for applications where the process media is delicate, shear sensitive or viscous with solids in suspension.

The Bareshaft and Hydraulically Driven Flexible Impeller Pump Series’ is particularly useful when an existing drive train is already in places such as PTOs, belt drives or hydraulic motors on vehicles such as trucks, tractors and boats.

The S/P and MID Series’ are the perfect solution for low head transfer, filling, metering, loading and offloading applications in both industrial and hygienic sectors for a variety of reasons, including:

  • Lightweight and compact design
  • Versatile port configuration
  • Ability to handle a wide variety of fluids
  • Range of accessories available to create the right solution for your application
  • Variety of material options



SP and MIDI Flexible Impeller Pump Dimensions

S/P and MID Flexible Impeller Pump Performance Data

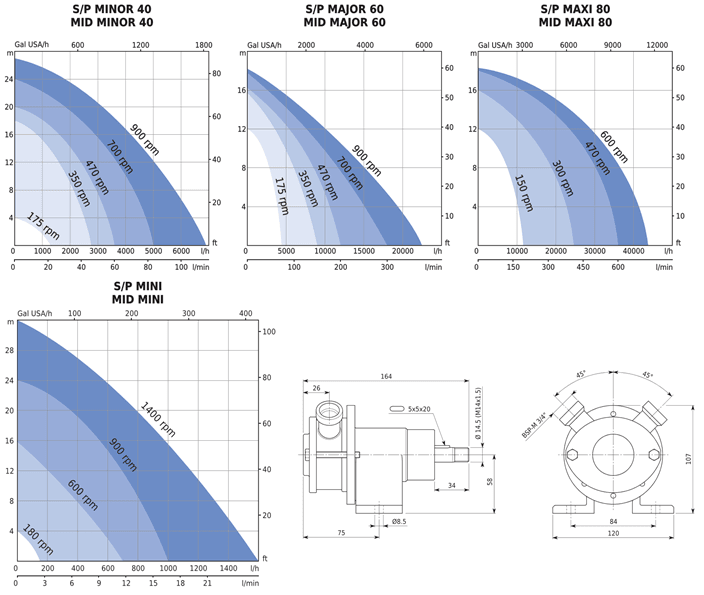

SP and MIDI Flexible Impeller Pump Performance Curves

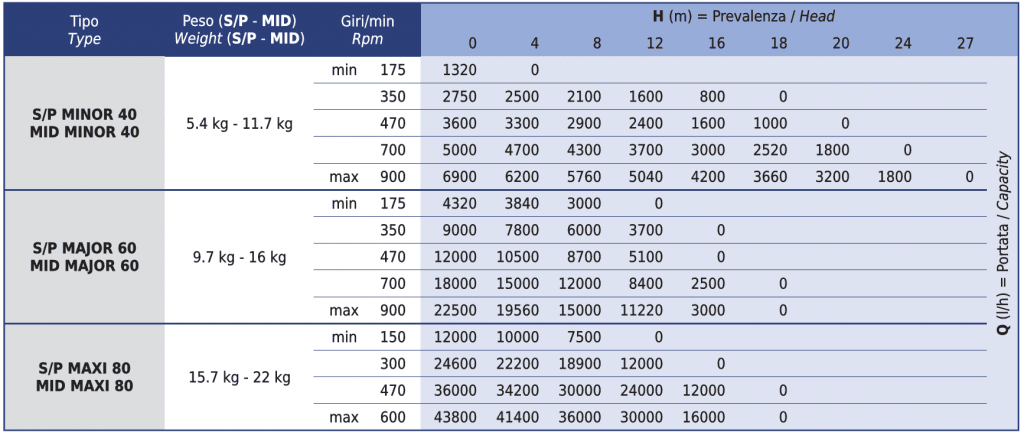

S/P and MID Performance Table

S/P and MID Flexible Impeller Pump Performance Table
