Aseptic Diaphragm Pump

Developed for industries requiring efficiency and the ability to clean components quickly, the Aseptic EHEDG Diaphragm Pump Series is perfect particularly for food, bio-tech and pharmaceutical businesses.



Contact us for pricing
Details
Features & Applications
Tech Info
Performance

The Aseptic Diaphragm Pump is cleanability tested, which means bacteria does not grow in the pump after the cleaning and draining procedure. Units can also be delivered with backup diaphragm systems. There are no hidden areas where bacteria can grow. The manifold clamps and the housing screws are simply removed for complete disassembly and cleaning. When used in conjunction with Tapflo’s patented control and monitoring equipment, preventive and routine maintenance is also easily integrated into any process, whilst also enabling accurate and precise control of the pump’s performance, optimising your system to the best of its ability!

Thanks to Tapflo’s innovative, simple & ingenious design these pumps are compact, robust & reliable. Furthermore, they are quick & easy to maintain, keeping your service costs and process downtime to an absolute minimum.

Models are supplied with an extra-fine surface finish to Ra 0.8 as standard and to Ra 0.5 upon request.

The pumps are supplied as standard with ISO Tri-Clamp connections, however, they may also be equipped with almost any type of connection used in the hygienic field – DIN clamps, SMS milk, RJT, DIN aseptic to mention a few.

ATEX rated. Now also available in the TZ ATEX Pump series which covers Zone 0 for environments where flammable materials are continuously present. The TZ range covers all materials in our ATEX AOD range except our Aluminium Metal Diaphragm Pump.

  • Air operated
  • Made from FDA and USP VI approved materials
  • Conforms to ATEX directive 94/9/EC
  • Has an EHEDG certificate
  • Supports C.I.P. and S.I.P. – cleaning and sterilization in place. The pump can then turn to support drainage.
  • Cleanability tested – no hidden areas where bacteria can grow in the pump after cleaning or draining
  • Efficient and easy disassembly

An Aseptic EHEDG Diaphragm Pump can be applied to a whole host of industries, including but not limited to:

Aseptic AODD application table

Technical Information
Capacity Up to 330l/min
Volume Up to 1415ml – based on pumps fitted with EPDM Diaphragms
Materials Stainless Steel AISI 316L. Extra fine surface finish to RA 0.8 as standard, or RA 0.5 upon request

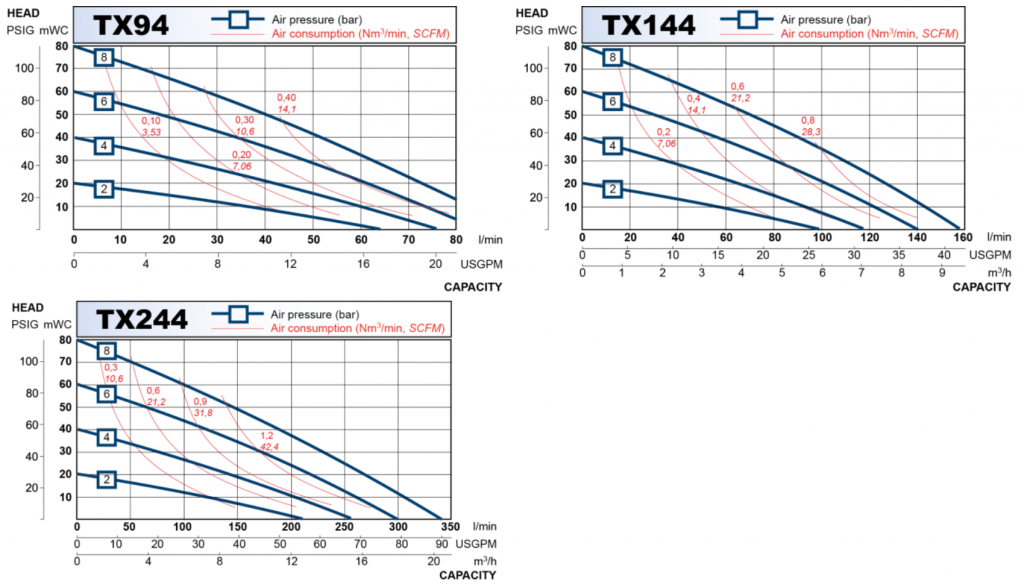

Aseptic Diaphragm Pump Performance Curves



Data Pump Size
TX94 TX144 TX244
Max Capacity (l/min) 94 144 330
Volume/Stroke (ml) * 320 515 1415
Max Discharge Pressure (Bar) 8 8 8
Max Air Pressure (Bar) 8 8 8
Max Dry Suction Lift (m) ** 2 3 4.4
Max Wet Suction Lift (m) 8 9 9
Max permissible ø of Solids (mm) (Ball Valves/Flap Valves) 6 6 10
Max Fluid Temp w/ EPDM/NBR Diaphragm (ºC) 80
Max Fluid Temp (ºC) 110
Min Fluid Temp (ºC) -20
Weight (Kg) 15 22 46
