Pulsation Dampeners

We supply a full range of Pulsation Dampeners including PE & PTFE, as well as Sanitary options to help remove pressure variations on the discharge of your Diaphragm Pump.



Contact us for pricing
Details
Features & Applications
Tech Info
Performance

The Tapflo Pulsation Dampener works in tune with the Diaphragm Pump it is fitted to, to automatically set the correct pressure to minimize the pulsations in the fluid from the pump’s outlet. The DT Pulsation Dampeners are available for all Tapflo pump sizes and material versions.

Pulsation Dampener Operating Principle

The air pressure supplied to the dampener is the same as the one supplied to the pump. When the pressure in the piping system decreases, due to the pulsating nature of the pump operation, the pulsation dampener supplies extra pressure to the discharge between the pump strokes, therefore supplying a steady flow of the pumped medium. This pumping action created by the dampener decreases the pressure variations and pulsations.



DT Active Pulsation Sanitary Dampener

DT Active Pulsation Sanitary Dampeners are perfect for industries that require a sterile environment. They are designed with CIP and SIP (cleaning and sterilisation in place) which allows an easy and effective cleaning operation.

The dampeners are manufactured from Stainless Steel AISI 316L, for aggressive fluids, to ensure mechanical strength and strong chemical resistance to support your pump. Dampeners can also be supplied with ATEX rating.

The Sanitary dampeners are ideal for the food, beverage, pharmaceutical and cosmetic industries and can be used for the following applications.



DT Active Pulsation Metal Dampener

The DT Active Pulsation Metal Dampener removes pressure variations within pumping operations. It achieves this by supplying extra pressure between pump strokes.

Use of this dampener optimizes the pumps performance and minimizes vibrations.

The compact DT Active Pulsation Metal Dampener is supplied in either Aluminium or Stainless Steel AISI 316, for use alongside metal Air Operated Diaphragm Pumps and aids in reducing pump maintenance costs.

If required, dampeners can be ATEX rated.





Features

  • Minimise vibrations and water hammer effects
  • Protect all kinds of instruments in your pipework
  • Optimise pump performance and reduce maintenance costs
  • Requires no pre-charging
  • Modulates itself to the system requirements and pump performance, unlike standard dampeners.
  • The DT series is a more compact and modular unit which can be easily integrated into pipework systems or supplied built onto pumps to reduce area footprint even further.
  • Can be supplied with numerous options such as:
  • BSP / NPT / Sanitary / Flanged Connections
  • Baseplates or Anti-Vibration Feet
  • Back-Up Diaphragm & fitted Guardian System
  • Housing Reinforcement Plates
  • Fitted to pump on a trolley

Applications



Active Pulsation Dampeners are available in a range of different materials, the applications for each range differ. Please see a guide below, please check with the Sales Team for other applications not mentioned as they’ll be happy to advise on the best option.

HDPE/PTFE:

Chemical Acid, Alkalis, Alcohol, Solvents, Latex & Emulsions
Food CIP Fluid, Flavourings & Pigments
Pulp & Paper Glue, Slurries, Adhesives, Dispersions, Resins, Sodium Silicate & Titanium Oxide
Surface Conditioning Electroplating Baths, Various Acids, Solvents, Anodic Sludge, Varnish & Enamels
Water Treatment Sludge Handling, Filter Press Applications, Neutralisation & Flocculants
Electronics Carrier Fluids, Ultra-Pure Liquids, Electroplating Solutions, Mercury & Solvents
Print & Paint Glue, Additives, Varnish, Ink, Paint, Latex, Acid, Resins & Pigments

Metal:

Workshops Oil, Fat, Solvents, Water, Cooling Fluids, Lubricants
Print & Paint Glues, Additives, Varnishes, Inks, Paints, Latex, Acids, Resins, Pigments
Mining & Construction Adhesives, Dewatering, Coal Sludge, Pastes Ceramics
Industry Abrasives, Glazes, Water, Enamels, Clays
Chemistry Acids, Alkalis, Alcohols, Solvents, Latex, Emulsions

Sanitary:

Dairy Products Milk, Creams, Yogurts, Cream Cheese, Melted Cheese
Grocery Ketchup, Mayonnaise, Tomato Products, Mustards
Beverages Flavours, Colouring, Fruit Juice
Bakery Dough & Ingredients
Brewery Beer, Flavourings, Colourings
Wort Hygiene Soap, Toothpaste, Shampoo
Cosmetics Cream, Alcohol, Perfume

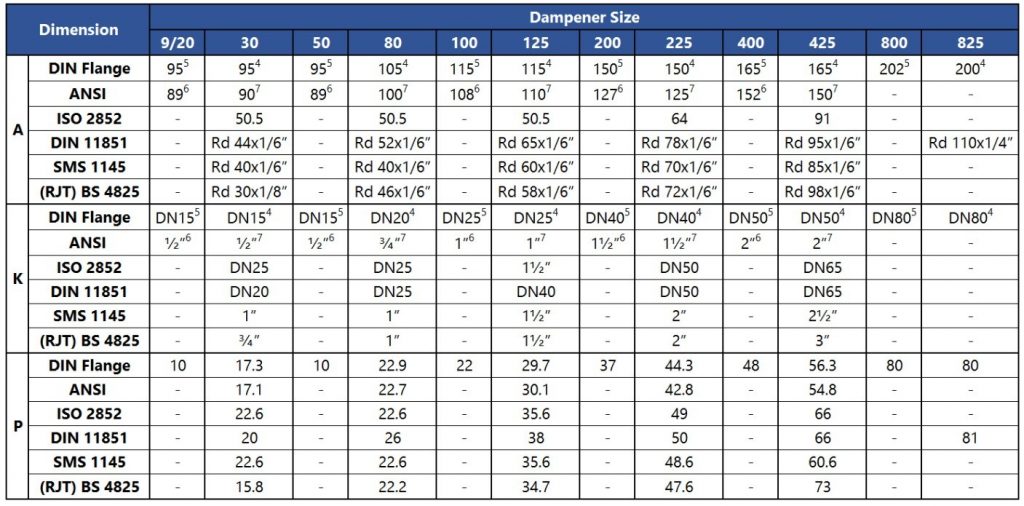

Dimensions

Pulsation_Dampener_size_Dimensions
