PP & PVDF Immersion Centrifugal Pump

The PP & PVDF Immersion Centrifugal Pumps are a highly reliable transfer and fluid circulation pump. These CTV Pumps are usually installed in surface treatment baths, circulating through the filter and further to nozzle ramps.

Contact us for pricing
Details
Features & Applications
Tech Info
Performance

Both the PP and PVDF are manufactured from a reliable design. The pump is designed so that the motor sits above the fluid’s surface, this eliminates the need for seals within the pump which reduces the risk of leaks within the pump. This allows the Vertical Immersion Centrifugal Pump to be maintained and troubleshot quickly in order to reduce downtime and keep maintenance costs down. In fact, the Immersion Centrifugal Pump is often maintenance-free.

The Vertical Immersion Centrifugal Pump can handle solids up to 6mm in diameter and be submersed to a depth of 419-425mm, this will vary depending on the model and size of your Immersion Centrifugal Pump so please check your specifications with a member of the sales team.

The Vertical Immersion Centrifugal Pump is also available in Stainless Steel.

Immersion Centrifugal Applications:

  • Heat Exchangers
  • Water Treatment
  • Surface Treatment
  • Waste Disposal

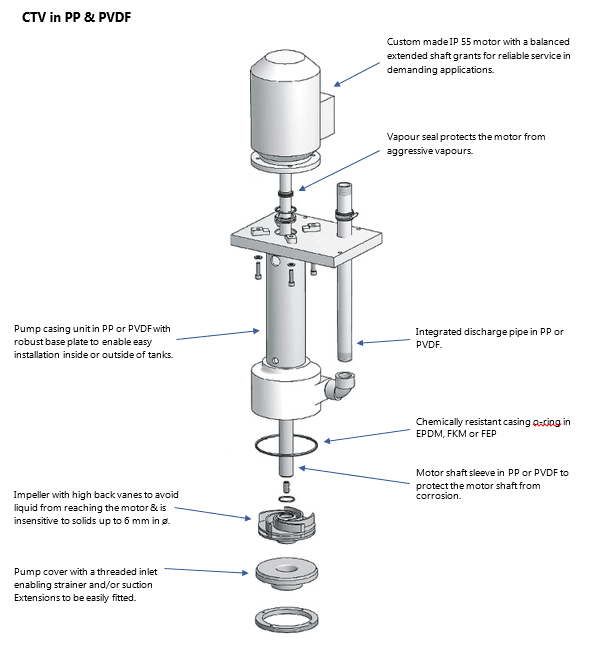

PP & PVDF CTV Pump Features

Technical Information

Drive Type Electric
Flow Rate up to 28 m³/hr
Pressure up to 22m
Material Polypropylene, Polyvinylidine Difluoride (PVDF)
Self-Priming No
Solids Handling up to 6mm
Viscosity 0-200 cSt

PP & PVDF Units

Pump Size 25-9 25-10 25-11 25-11.5 32-8.5 32-10 32-12.5
Max Capacity, m³/hr 10.2 13.2 15.6 18 19.8 24 27
Max Head, m 10 14 16 19 10 17 23
Motor Power, kW 0.55 0.75 1.1 1.5 1.1 1.5 2.2
Outlet ø, BSP 1” 1” 1” 1” 1¼” 1¼”





The CTV units are available with 2 pole motors and capable of a wide envelope of capacity, detailed as follows:

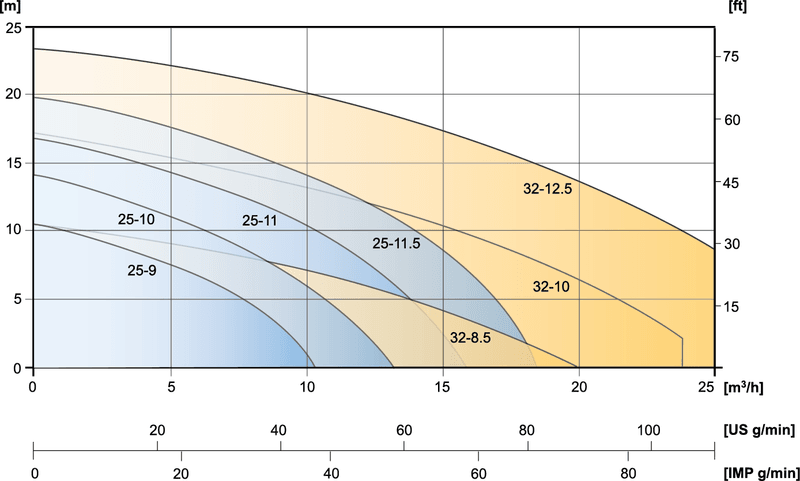

PP & PVDF CTV Pump capacity range
