Metal Camlock Connections

A popular option for our metal series diaphragm pumps is to be ordered with metal CAM Lock connections as they have a simple operation and structure. Our Camlock Connections are easily fixed to the pumps.

Contact us for pricing
Details
Features & Applications
Tech Info
Performance

Their simple structure and easy operation make them very popular. CAM Lock connections are made in compliance with MIL-C-27487 (A-A-59326) specifications. The coupling is connected by simply opening the coupler arms and inserting the adaptor into the coupler. The CAM Lock arms are then closed under normal hand pressure to complete the joint.



CAM Lock Materials:

  1. The couplings can be made from aluminium and stainless steel AISI 316.
  2. Handles are made of stainless steel AISI 304 as a standard for all couplings made of stainless steel.
  3. Aluminium couplings are available with stainless steel handles in sizes 1/2”, 3/4”, 1” and brass handles in sizes 1.1/2” and 2”.
  4. The standard coupling is supplied with a nitrile rubber or PTFE/nitrile rubber seal placed in the groove of a coupler.

Coding required for special execution

When ordering CAM Lock connections with your Tapflo Diaphragm Pump, you will need to include the connection code to ensure you receive the special execution correctly.

If you decide to order a pump with CAMLOCK please use 3ZA, 3ZS or 3ZSX at the end of the pump code, e.g. T120 STT-3ZS.

  • 3ZA – CAM Lock connection made from Aluminium: This execution features a male coupler screwed into the pumps manifolds.
  • 3ZS – CAM Lock connection made from Stainless Steel AISI 316: This execution features a male coupler screwed into the pumps manifolds.
  • 3ZSX – Manifolds integrated with CAM Lock connections made from Stainless Steel AISI 316: This execution features a male CAM Lock coupling as a one-piece with manifold (welded).

NOTE: As standard Tapflo’s pumps with this special execution do not have counter connections but you can order them from us upon request if required. The counter connections are available with hose and threaded connections for Aluminium CAM Locks and hose, thread and plain weld end for Stainless Steel AISI 316 CAM Locks.

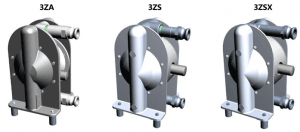

Diaphragm Pump CAM Lock connection options



CAM LOCK Connections Without Pump:

If you already have the pump and you wish to change the connections you can order them separately using the following Tapflo codes:

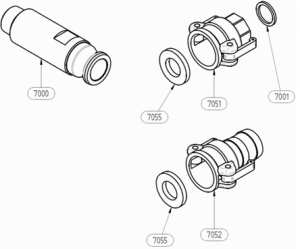

Aluminium AODD – Screwed Male Camlock



Aluminium AODD Male Cam Locks
Pump Type Coupling BSP Thread Material Tapflo CAM Lock Code (Screwed in Pump) Tapflo Code for Counter Connection Connection Type for Counter Connection
T25 A 1⁄2″ ALU 6-025-7000 6-025-7051 Screwed
6-025-7052 Hose
T70 A 3⁄4″ ALU 6-070-7000 6-070-7051 Screwed
6-070-7052 Hose
T120 A 1″ ALU 6-120-7000 6-120-7051 Screwed
6-120-7052 Hose
T220 A 11⁄2″ ALU 6-220-7000 6-220-7051 Screwed
6-220-7052 Hose
T420 A 2″ ALU 6-420-7000 6-420-7051 Screwed
6-420-7052 Hose

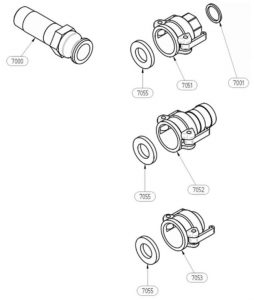

Stainless Steel AODD – Screwed Male Camlock

Stainless_Steel_AODD_Screw_Male_Camlock
Pump Type Coupling BSP Thread Material Tapflo CAM Lock Code (Screwed in Pump) Tapflo Code for Counter Connection Connection Type for Counter Connection
T70 S 3⁄4″ AISI 316L 6-072-7000 6-072-7051 Screwed
6-072-7053 Welded
6-072-7052 Hose
T120 S 1″ AISI 316L 6-122-7000 6-122-7051 Screwed
6-122-7053 Welded
6-122-7052 Hose
T220 S 11⁄2″ AISI 316L 6-222-7000 6-222-7051 Screwed
6-222-7053 Welded
6-222-7053 Hose
T420 S 2″ AISI 316L 6-422-7000 6-422-7051 Screwed
6-422-7053 Welded
6-422-7052 Hose

Stainless Steel AODD – Male Camlock Integrated W/ Manifold

Stainless_steel_AODD_Screw_Male_Camlock
Pump Type  Coupling BSP Thread Material Tapflo CAM Lock Code (Screwed in Pump) Tapflo Code for Counter Connection Connection Type for Counter Connection
T70 S 3⁄4″ AISI 316L 6-072-7200 6-072-7051 Screwed
6-072-7053 Welded
6-072-7052 Hose
T120 S 1″ AISI 316L 6-122-7200 6-122-7051 Screwed
6-122-7053 Hose
6-122-7052 Hose
T220 S 11⁄2″ AISI 316L 6-222-7200 6-222-7051 Screwed
6-222-7053 Welded
6-222-7052 Hose
T420 S 2″ AISI 316L 6-422-7200 6-422-7051 Screwed
6-422-7053 Welded
6-422-7052 Hose

Gasket Between Couplings

If gaskets are worn and need replacing then you can order using the following Tapflo Codes:

Pump Type Size Material Tapflo Code Material Tapflo Code
T25 A 3⁄4″ PTFE/NBR 6-25-7055-1-3 NBR 6-025-7055-3
T70 A/S 3⁄4″ 6-07-7055-1-3 6-070-7055-3
T120 A/S 1″ 6-120-7055-1-3 6-120-7055-3
T220 A/S 11⁄2″ 6-220-7055-1-3 6-220-7055-3
T420 A/S 2″ 6-420-7055-1-3 6-420-7055-3



Pump Type Size Material Tapflo Code
T25 A 3⁄4″ PTFE 6-025-7001-1
T70 A/S 3⁄4″ 6-070-7001-1
T120 A/S 1″ 6-120-7001-1
T220 A/S 11⁄2″ 6-220-7001-1
T40 A/S 2″ 6-420-7001-1

Threaded Connection Gasket

Pump Type Size Material Tapflo Code
T25 A ¾”         PTFE 6-025-7001-1
T70 A/S ¾” 6-070-7001-1
T120 A/S 1” 6-120-7001-1
T220 A/S 1½” 6-220-7001-1
T420 A/S 2” 6-420-7001-1

If you have further questions, our Pump Specialists will have the answer.

Please don't hesitate to get in touch:

01928 333 400
[email protected]
