HDPE & PTFE Filter Press

The HDPE and PTFE Filter Press Pump is a self-regulating, compact unit mounted directly to the filter press. The booster is fitted with a pressure regulator and two manometers as standard. As well as being supplied with reinforced plates.





Contact us for pricing
Details
Features & Applications
Tech Info
Performance

Your existing Air Operated Double Diaphragm Pump can be easily altered to become a Filter Press Pump.

As a standard, the booster is equipped with a pressure regulator and two manometers. In comparison to a standard pump, our TF version is equipped with reinforcement plates and a special air valve with PET piston. We also recommend using an aluminium centre body instead of the standard PP for better durability.

This HDPE/PTFE Filter Press Pump station is self-regulating and no additional device for regulating the capacity is necessary. It is, therefore, a plug and play solution, mounts it to the Filter Press. Connect the air and fluid pipework, away you go! For monitoring the filling level of the Filter Press, stroke sensors, stroke counters & flow meters are available.

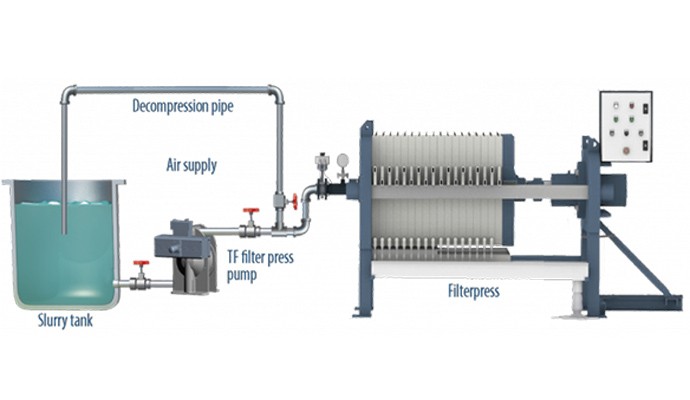

Installation Example:

Filter Press Pump Installation

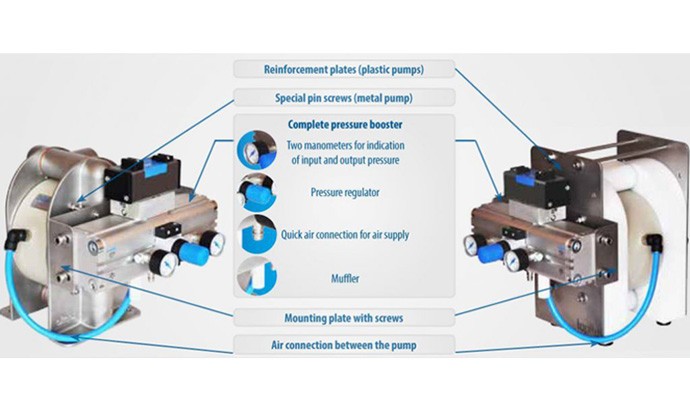

Scope of Supply

Parts in the Filter Press Pump

Turn your Tapflo AODD Pump into a TF Filter Pump

Turn your existing Tapflo Air Operated Double Diaphragm Pump into a TF Filter Press Pump by purchasing the following parts:

  • 1 x Long Reinforcement Plate
  • 1 x Short Reinforcement Plate
  • 1 x Booster Mounting Plate
  • 2 x Pin Screws
  • 1 x Booster Complete Set
Technical Information
Delivery Pressure Up to 14 Bar
Discharge Up to 16 Bar – when amplified by a booster
Materials HDPE & PTFE, we recommend an Aluminium centre body to improve durability
