Gearbox Drive Flexible Impeller Pump

The Gearbox Drive Self-Priming Flexible Impeller Pump is perfect for applications requiring low-performance speeds for shear sensitive fluids or those with a medium to high viscosity.

Contact us for pricing
Details
Features & Applications
Tech Info
Performance

Due to the close-coupled design of the RID Self-Priming Flexible Impeller Pump, the rotation of the pump head into different porting configurations can be taken advantage of, a possible drawback with the GR series.

The RID MAXI DOUBLE 2Q doubles the flow capability of the RID MAXI 80, whereas the RID MAXI DOUBLE 2H doubles the head capability.

Units can be supplied with or without baseplates, trolley mounted and with or without control panels and wired Dry Run Protection. All models are 3 Phase. Manual or Spring Loaded By-Passes are also available on request.

Characterised by its close-coupled design to a geared motor, making it ideally suited to medium to high viscosity or shear sensitive fluids where low operating speeds are required.

Technical Information
Voltages 230 and 400V
Speed Up to 700 rpm

Voltages: 230 & 400V (3 Phase)

Speeds: 235, 300, 350, 470, 600 & 700 rpm single & dual speed (235-470, 300-600 & 350-700 rpm)

Counter Connections: All pumps are supplied with Garolla Fittings as standard however a wide range of connection & counter connection types are available upon request.

Counter Connections: All pumps are supplied with Garolla Fittings as standard however a wide range of connection & counter connection types are available upon request.

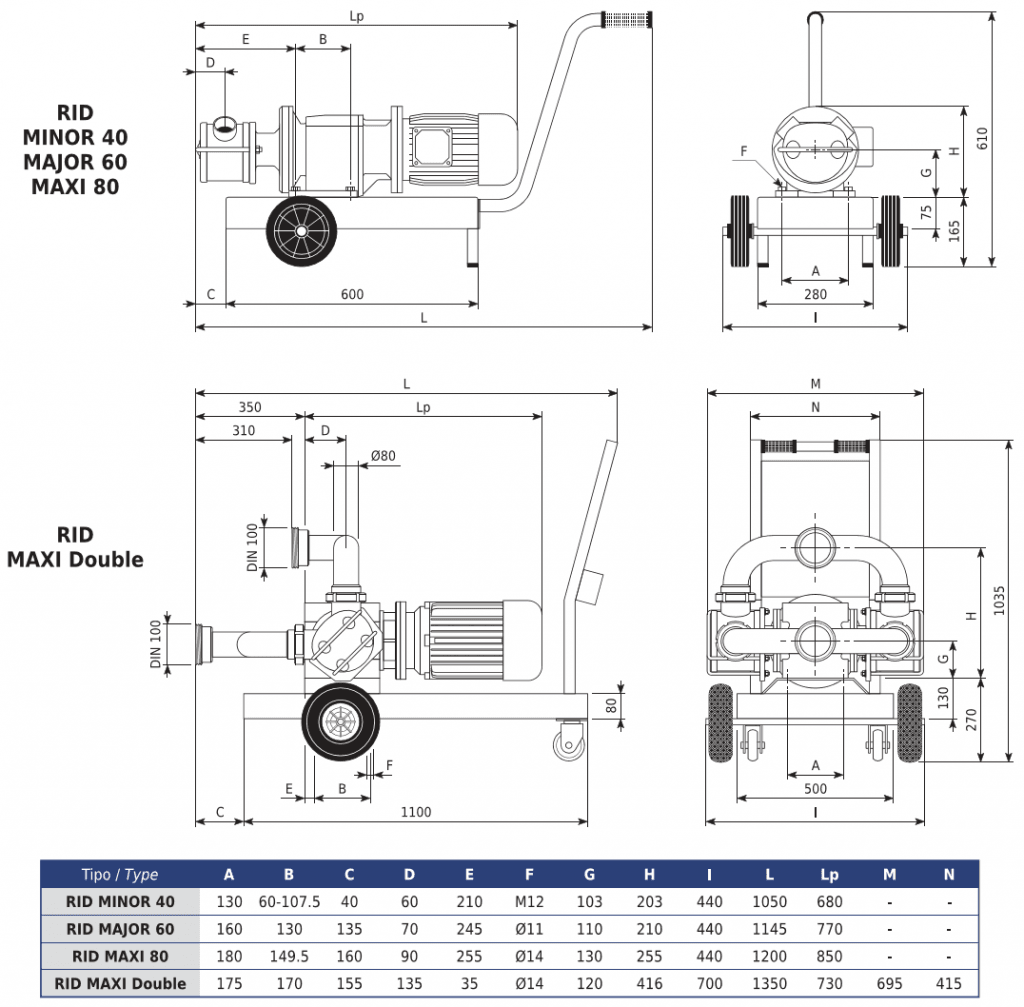

Dimension Diagrams for the RID Flexible Impeller Pump Series

Gearbox Drive Flexible Impeller Pump Dimensions

Performance Curves

RID self-priming performance table RID self-priming performance curve
