Flexible Impeller Pump Accessories

Dry Run Protection

Dry Run Protection can be fitted to pump heads from MINOR sizes upwards. It is a temperature sensor that automatically stops the pump once it registers a temperature higher than 50ºC within the pump head. For fluids being pumped higher than this temperature then sensors set at 70 & 90ºC are available on request and need to be specified at the order stage. Once the temperature in the pump head drops below the pre-set value the pump automatically starts back up.

By-Pass Valve

Manual and Spring Loaded By-Passes are available on all pumps can are ideal when the pump is being used with a discharge nozzle or there is the potential for Dead Head Operation. Manual By-Passes: MINI, MAJOR, MAX Pump Types Spring Loaded By-Passes: MIDEX & MINOR Pup Types.

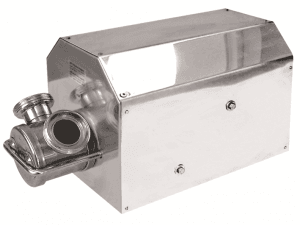

Hygienic Shrouds

1. Hygienic Shrouds for use in food environments & Wash Down Areas
2. Mounted to SS 316 Baseplates or Trolleys
3. Trolleys are fitted with white Food Grade Wheels
4. Trolley mounted units come with the standard CE Compliant Control Panel

IRR Centrifugal Sprinkler Kit

The IRR Centrifugal Sprinkler Kit rotates using the pressure of the feed pump and is available in 2 set sizes: IRR 50: Suitable for an Impeller Pump with a capacity from 100 – 225 hl/hr IRR 65: Suitable for pumps with a capacity from 225 – 500 hl/hr It provides a universal drizzling effect from the cap granting excellent colour leaching, Standard fastenings are for 400 mm manways. however, larger dimensions are available on request. Visit the product page for information on the Flexible Impeller Automatic Barrel Filling Kit.
