Pneumatic Level Controllers

Name: Pneumatic Level Controllers - TS Pumps
SKU: TPUK

Pneumatic Level Controllers are designed to control liquid levels within any of the AODD pumps that we supply. The controllers are supplied as either automatic or manual and installed into either sumps, tube or tanks.

Details

Features & Applications

Tech Info

Performance

Due to the pneumatic components meaning a lack of electricity to the system, the controllers are able to be used in explosion prone, hazardous areas. The manual level controller is automatically stopped when the surface of the liquid is detected at the dip tube. The automatic level controller monitors the liquid levels by passing low-pressure air through dip tubes. The liquid levels can be configured into ‘filling’ or ’emptying’ modes. The pump will continue pumping until the required level of liquid is reached, this can be detected within a few millimetres due to the extreme accuracy of the Pneumatic Level Controller.

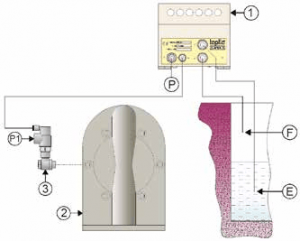

TPUK-LA

Automatic evacuating/filling of vessels or sumps

The level controller utilizes low-pressure air passed through dip tubes to detect liquid levels. The system controls the liquid level between the dip tubes and can be configured in either ’filling’ or ’emptying’ modes. The end of the hose “low” (E) (or end of extension pipe) is placed on the desired low level in the sump and the end of the hose “high” (F) is placed on the high-level position. As the liquid is reaching the high-level hose, the pump will either start or stop and pump until the desired liquid level is reached. It is a very accurate system, sensing the levels within a few millimetres.

TPUK-LA Level Controller
AODD Pump
Blocking Needle Valve
Air Supply to Level Controller

P1. Air Supply to Pump

“Empty / Fill” Level Tube
“Full / Empty” Level Tube

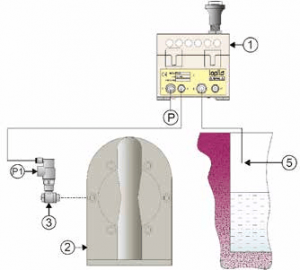

TPUK-LM

Manual filling/evacuating of vessels or sumps

The system is manually started and the AODD pump begins pumping emptying or filling the vessel or sump. The pump is then automatically stopped when the liquid surface is detected at the dip tube.

TPUK-LM Level Controller
AODD Pump
Blocking Needle Valve
Dip Tube (Example shows filling)
Air Supply to Level Controller

P1. Air Supply to Pump

Technical Information
Ambient Temperature	Between -5 and 40ºC
Air Pressure	Between 3-7 Bar
Air Consumption	On average 2 l/min
Materials	ABS Plastic or Stainless Steel AISI 316
