Close Coupled Self Priming Flexible Impeller Pump

Name: Close Coupled Self Priming Flexible Impeller Pump - TS Pumps
SKU: EP

The Close Coupled (EP Series) is an industry favourite as it is the most frequently used type of Self-Priming Flexible Impeller Pump. It is defined by an on/off/reversing switch on the terminal box of the pump’s motor which makes transferring, filling and emptying applications effortless.

Details

Features & Applications

Tech Info

Performance

The EP Self Priming Flexible Impeller Pump is characterized by its close-coupled design and integral on/off/reversing switch on the terminal box of its motor which is available in both single and three-phase. Upon request, three-phase units can also be supplied with terminal board connections for hard wiring into the installation. They are one of the most commonly used types of Self Priming Flexible Impeller Pumps, ideal for transferring, filling & emptying applications in a plethora of industries as they can also be fitted with carrying handles (U & L Shaped) or trolleys (Zinc Coated Iron & SS 304), which makes them a particularly versatile utility pump

Features & Benefits of the Liquid ring pump:

The Close Coupled Series suit a range of industries due to their versatile nature as they can be fitted to carrying handles or trolleys, and the pump can be rotated in 5 different ways to fit various installations.

Self-priming up to 6 m, also with entrained gases & under low NPSH conditions
Reversible & Pulseless flow – Close Coupled units come with On / Off / Reversing Switches as standard
Dry running for short periods of time
Connection Sizes from 3⁄4” up to 3” in Industrial & Hygienic variants
Flow Rates up to 900 l/min
Heads up to 55 m
Available Bareshaft, Belt Driven & With Clutch (Manual & 12 / 24V), Hydraulically Driven, Long & Close Coupled & ATEX rated. 12, 24, 110, 230 & 400V Motors all available on request.
A wide array of accessories such as carrying handles, trolleys, variable speed drives & batching systems

Typical Applications:

Clear Fresh Water Transfer & Filtration Applications
Sump & Tank Emptying
Food Grade, Low Viscosity, Transfer Applications
Wash-Down
Portable Tank to Tank Transfer & Refiling
CIP Scavenge

Technical Information
Discharge Pressure	Up to 4 Bar
Dry Suction lifts	Up to 6m
Flow rates	Up to 1200l/min
Maximum fluid temperature	Up to 120◦C

Manual & Spring Loaded By-Passes are available on request.

Motor Connection Switch Options for the EP Flexible Impeller Pump Series

Voltages: 12, 24 DC (Continuously Rated) & 110, 230 & 400V (1 & 3 Phase)

Speeds: 470, 600, 900 & 1400 rpm single & dual speed Counter Connections: EP MINI & MIDEX Models are supplied with SS 304 & 316 Hose Connections as standard. Garolla to BSP F Reducers are available on request for other models.

Pumps fitted with a single-phase motor are equipped with a 2 m power supply cable & Schuko (Euro) Plug.
Pumps fitted with a three-phase motor are equipped with a 4 m power supply cable with no plug and must be connected via a qualified electrician.

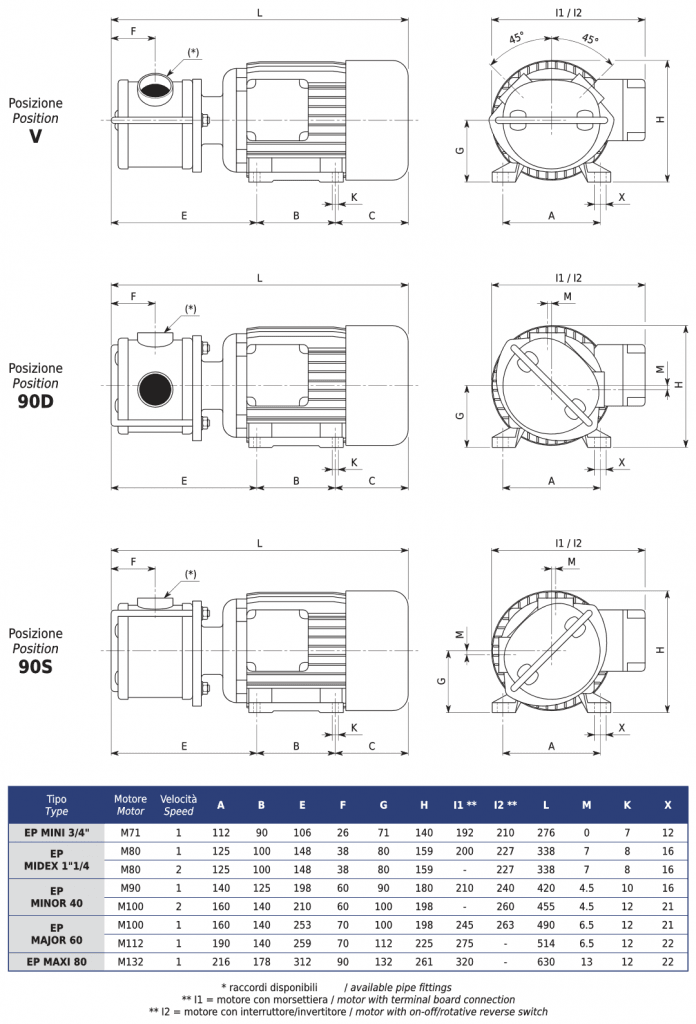

EP Flexible Impeller Pump Series Dimensions

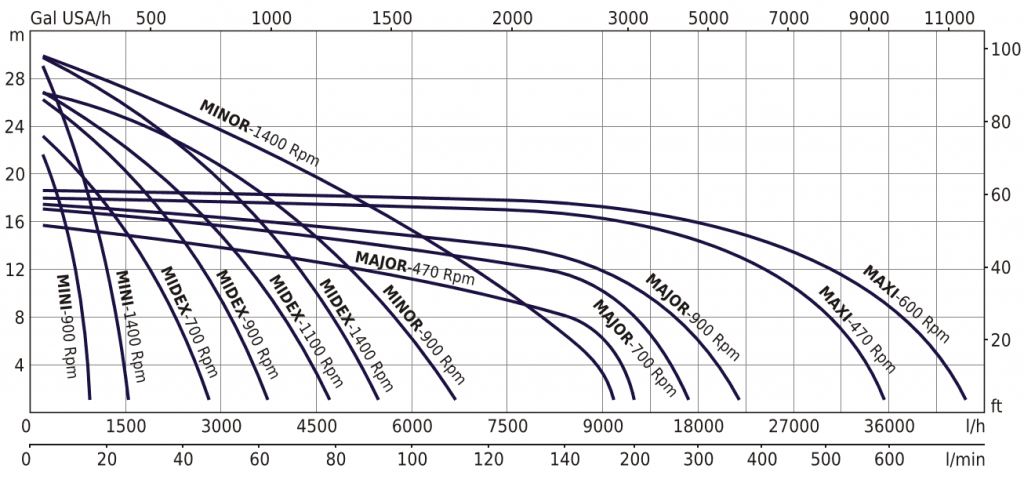

EP Flexible Impeller Pump Performance Curves

EP Series Performance Table

EP Flexible Impeller Pump Performance Data
