Batch Controller

The Pony Plus Batch Controller is a perfect addition to the Self-Priming Flexible Impeller Pump range. It features the Pony Plus Flow Control, Display & Totalizer which can be wired to a variety of food-grade turbine flow meters and all our supply of Self-Priming Flexible Impeller Pumps.

Details

Features & Applications

Tech Info

Performance

Pony Plus Batch Controller

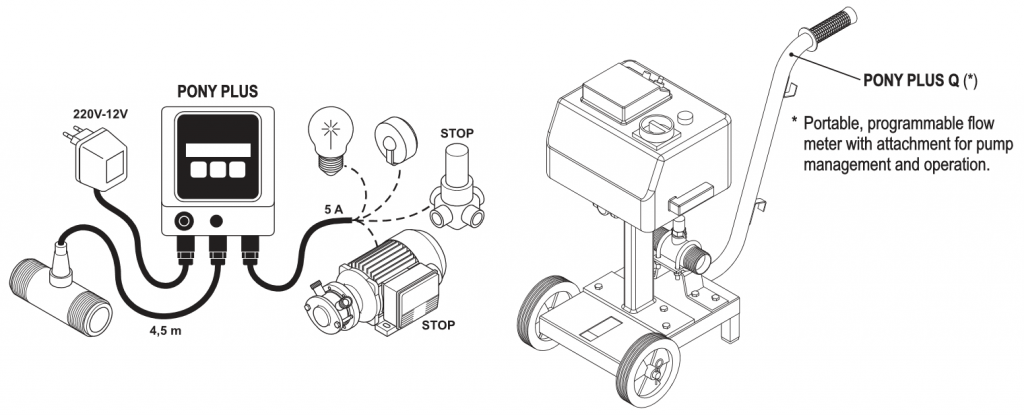

The batch controller can be delivered as a standalone system (PONY PLUS Q) which can be connected to an existing pump, valve or alarm or indeed trolley mounted with the pump included. The maximum viscosity for the meters is 80-100 cPs so this is ideal for a wide array of fluids within the food and beverage markets as well as the general industry for light fuel oils and hydrocarbons. There is an Impulse setting for calibration to the intended fluid. The control panel which is delivered on either the standalone unit or trolley mounted system features Dry-Run Protection as well as the standard on / off / reversing and isolating control. Remote Control Reset is also available on request. The display can indicate: Total displaced volume (with zero setting) up to 999.999 units. Partial volume in different units of measurement: litres, imperial gallons, US gallons. Accuracy is +/- 1%

Technical Information
Maximum pressure	Up to 40 Bar
Maximum Viscosity (for meters)	80 -100 cPs
Materials	SS316
Applications	Fluids within food and beverage industries, or general industry using light fuel oils and hydrocarbons

Type	Connections	Output Signal	Material	Max Pressure	Batching Range
PONY PLUS ¹⁄2″	1″	30mA/5A	SS 316	40 Bar	3-30 l/min
PONY PLUS ³⁄4″	1″				7-70 l/min
PONY PLUS 1″	1				10-100 l/min
PONY PLUS 1¹⁄2″	1¹⁄2″				35-350 l/min
PONY PLUS 2″	2″				7-750 l/min
PONY PLUS 2¹⁄2″	2¹⁄2″				100-1000 l/min
PONY PLUS 3″	3″				150-1500 l/min
PONY PLUS 4″	4″				300-3000 l/min
PONY PLUS 5″	5″				500-5000 l/min
